Fiber Polarization Controller Piezoelectric – 0.5dB, 100kHz

Fiber Polarization Controller Piezoelectric – 0.5dB, 100kHz
Features:
  • Large Phase Change
  • High Reliability
  • Low Insertion Loss
  • Compact Size
  • High Optical Power Handling

Plug-Play Module (4 Plates)

Fiber Type SM450 PM400 PM460 SM600 PM630 780HP PM780 SM800 PM850 PM980 Hi1060 SM28 PM1550 SM1950 PM1950
Wavelength (nm) 480 – 650 400 – 480 460 – 700 620 – 650 620 – 650 760 – 800 760 – 800 830 – 870 830 – 870 960 – 1080 960 – 1080 1250 – 1650 1250 – 1650 1700 – 2300 1800 – 2200
# Plate 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
Fiber Cover (mm) 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
Fiber Length (m) 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Connector FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC
Datasheet
Price $𝟨,𝟢𝟩𝟤 $𝟧,𝟪𝟣𝟩 $𝟧,𝟧𝟪𝟨 $𝟦,𝟢𝟨𝟤 $𝟦,𝟩𝟦𝟨 $𝟥,𝟫𝟩𝟫 $𝟦,𝟧𝟨𝟢 $𝟦,𝟢𝟢𝟨 $𝟦,𝟦𝟥𝟣 $𝟦,𝟣𝟫𝟣 $𝟥,𝟪𝟤𝟤 $𝟤,𝟣𝟨𝟩 $𝟤,𝟧𝟩𝟧 $𝟧,𝟦𝟦𝟪 $𝟨,𝟢𝟩𝟤
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now

3 Plates

Fiber Type SM450 PM400 PM460 SM600 PM630 780HP PM780 SM800 PM850 PM980 Hi1060 SM28 PM1550 SM1950 PM1950
Wavelength (nm) 480 – 650 400 – 480 460 – 700 620 – 650 620 – 650 760 – 800 760 – 800 830 – 870 830 – 870 960 – 1080 960 – 1080 1250 – 1650 1250 – 1650 1700 – 2300 1800 – 2200
# Plate 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
Fiber Cover (mm) 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
Fiber Length (m) 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Connector FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC
Datasheet
Price $𝟥,𝟥𝟩𝟤 $𝟥,𝟪𝟥𝟥 $𝟦,𝟧𝟤𝟨 $𝟥,𝟢𝟢𝟤 $𝟥,𝟨𝟪𝟩 $𝟤,𝟫𝟣𝟫 $𝟥,𝟧𝟢𝟤 $𝟤,𝟫𝟦𝟩 $𝟥,𝟥𝟩𝟤 $𝟥,𝟣𝟥𝟤 $𝟤,𝟩𝟨𝟤 $𝟣,𝟤𝟣𝟨 $𝟣,𝟦𝟤𝟨 $𝟦,𝟢𝟣𝟫 $𝟦,𝟤𝟫𝟧
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now

4 Plates

Fiber Type SM450 PM400 PM460 SM600 PM630 780HP PM780 SM800 PM850 PM980 Hi1060 SM28 PM1550 SM1950 PM1950
Wavelength (nm) 480 – 650 400 – 480 460 – 700 620 – 650 620 – 650 760 – 800 760 – 800 830 – 870 830 – 870 960 – 1080 960 – 1080 1250 – 1650 1250 – 1650 1700 – 2300 1800 – 2200
# Plate 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
Fiber Cover (mm) 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9 0.9
Fiber Length (m) 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Connector FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC FC/APC
Datasheet
Price $𝟧,𝟥𝟫𝟨 $𝟦,𝟫𝟥𝟥 $𝟧,𝟧𝟪𝟨 $𝟥,𝟣𝟩𝟪 $𝟥,𝟪𝟨𝟤 $𝟥,𝟢𝟫𝟧 $𝟥,𝟨𝟩𝟨 $𝟥,𝟣𝟤𝟤 $𝟥,𝟧𝟦𝟩 $𝟥,𝟥𝟢𝟩 $𝟤,𝟫𝟥𝟪 $𝟣,𝟤𝟪𝟥 $𝟣,𝟨𝟫𝟣 $𝟦,𝟧𝟨𝟦 $𝟧,𝟥𝟫𝟨
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
Email Inquiry (Preferred)
Fast Quote-Select Part #
Questions About This Product
Phone Call Requires Email to Set-Up

SKU: PIPC

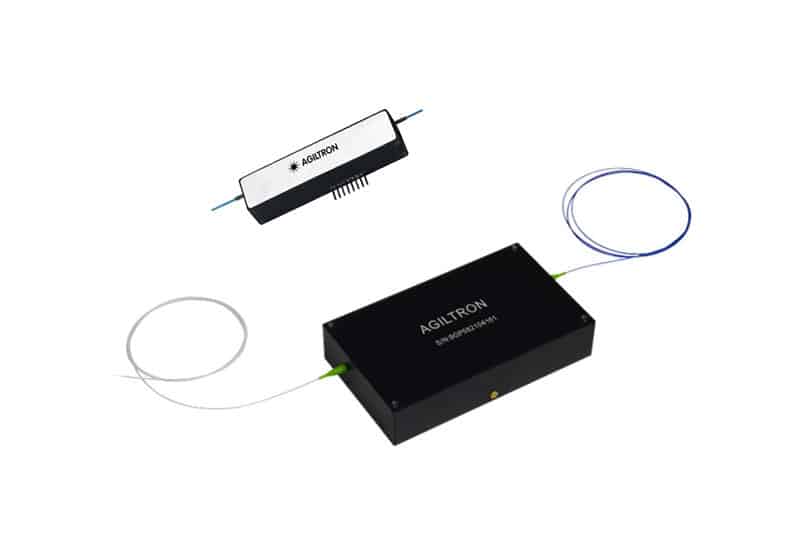

The Piezoelectric Polarization Controller (PIPC) uses up to four piezoelectric fiber-squeezing elements spaced 45° apart to induce controlled birefringence and phase retardation in an optical fiber. Each actuator applies variable pressure to the fiber, creating stress-induced birefringence via the photoelastic effect, where the refractive index becomes polarization-dependent. This controlled anisotropy produces a differential phase shift between orthogonal polarization modes, enabling precise polarization rotation and full coverage of the Poincaré sphere. The device is built from a single continuous strand of polyimide-coated fiber, ensuring minimal insertion loss, high reliability, and broadband operation, although the birefringence magnitude has some wavelength sensitivity. A compact turnkey module is available, incorporating a four-channel driver with independently adjustable 0–5 V analog control inputs and USB digital control with GUI. The controller includes a wall-powered supply and a five-pin connector for system integration in addition to the USB port for digital operation. Since piezoelectric actuators inherently drift with temperature and time, the PIPC is designed to operate with an external feedback loop and polarimeter for long-term polarization stability, enabling accurate transformation of any input polarization state to the desired output state with repeatability and precision.

Spec Sheet (PDF)
