High Power Fiber Optic Collimator

(1KW CW, SM, LMA, DCD, PM Fibers)

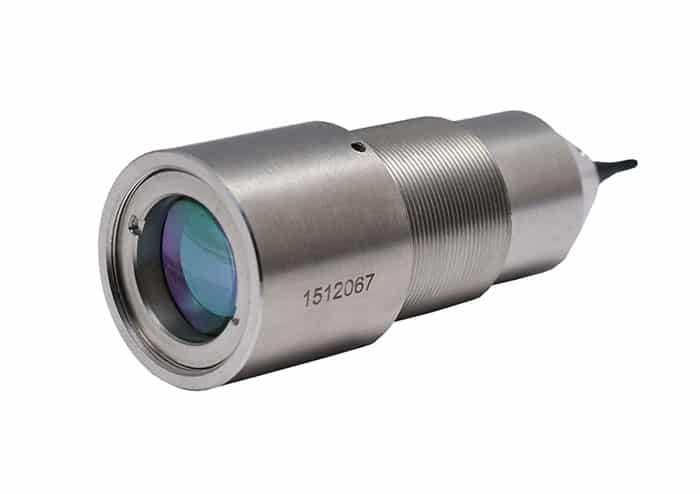

Agiltron’s High Power Fiber Collimators incorporates advanced technologies of direct fusion to a large beam expanding end cap ensuring safe power density, and a mode stripper that prevents burning the buffer/jacket by removing unwanted back-reflection radiation. These patented technologies significantly increase the collimator reliability. Agiltron provides customized beam size for a wide choice of operating wavelength and fiber types. Due to the mature production operation, we offer the most competitive pricing.

High Power Fiber Optic Collimator

Agiltron’s High Power Fiber Collimators incorporates advanced technologies of direct fusion to a large beam expanding end cap ensuring safe power density, and a mode stripper that prevents burning the buffer/jacket by removing unwanted back-reflection radiation. These patented technologies significantly increase the collimator reliability. Agiltron provides customized beam size for a wide choice of operating wavelength and fiber types. Due to the mature production operation, we offer the most competitive pricing.
High Power Collimator Min Typical Max Unit
Operating Wavelength (λc) 500-2000 nm
Power Handling 1000 W
Insertion Loss 0.4 0.6 dB
Return Loss[1] 50 dB
Divergence[2] 0.4 0.6 mrad
Extinction Ratio[3] 25 50 dB
Beam Roundness 90 %
M2* 1.2
Beam Diameter 1-5 mm
Operating Temperature 0 +70 ºC
Storage Temperature -40 +85 ºC
Package Dimension Φ30×50 mm

[1] For LMA fiber or double cladding fiber, return loss may be higher.

[2] Divergence depends on beam size.

[3] For PM fiber.
