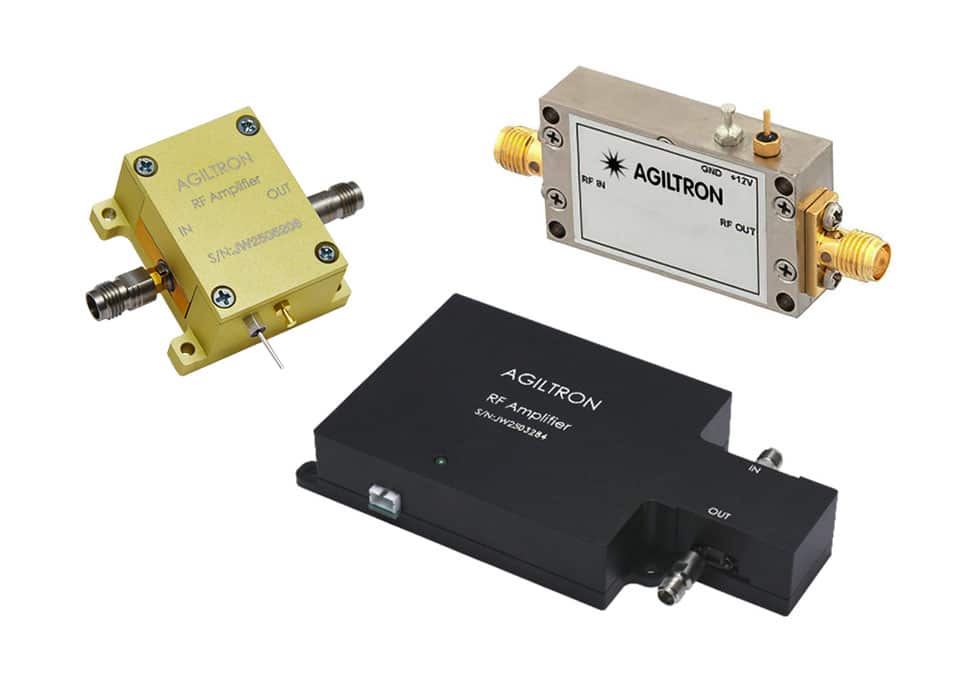

Broadband Low Noise RF Amplifier (LNA)

Name: James
Brand: Photonwares Co.
SKU: LNAM
Price: 36947 USD
Availability: InStock
Rating: 4.7 (19 reviews)

Features:

Broadband 50kHz to 50GHz
High Gain 30dB
Low Noise
Amplify The Control Signal

Low Frequency

High Frequency

Gain

P1dB

Power Supply

Module

Clear

Low Frequency	High Frequency	Gain	NF	P1dB	Output Vpp	Price
0.1GHz	8GHz	17dB	2dB	17dBm		$947
0.1GHz	8GHz	33dB	2dB	16dBm		$1,081
0.5GHz	18GHz	12dB	2.5dB	12dBm		$947
1GHz	18GHz	27dB	2dB	16dBm		$1,467
6GHz	18GHz	35dB	1.5dB	16dBm		$999
50kHz	20GHz	15dB	3dB	15dBm	4.48	$1,081
50kHz	20GHz	28dB	3dB	15dBm		$1,494
10MHz	43.5GHz	25dB	4.5dB	13dBm		$2,840
75kHz	43.5GHz	35dB	4.5dB	10dBm		$3,738
30kHz	45GHz	17dB			3	$1,724
30kHz	45GHz	30dB			7	$3,390
10MHz	50GHz	23dB	4.5dB	12dBm		$3,140
10MHz	50GHz	35dB	4.5dB	12dBm		$3,738
50GHz	50GHz	35dB	5dB	13dBm		$4,004

Email Inquiry

Fast Quote-Select Part #

Questions About This Product

SKU: LNAM

The LNAM series low noise amplifiers are designed to drive lithium niobate modulators. These amplifiers enhance the RF input signal to reach modulator’s Vp at high frequencies. They use 50 Ohm SMA connectors and operate within a frequency range of 50 kHz to 50 GHz.Agiltron provides cost-effective low-noise amplifiers with frequencies from 0.01-67GHz, a gain of 20 to 60dB, a peak of +5 to +27 dBm, and connectors from SMA of 1.85mm.

Agiltron provides cost-effective low-noise amplifiers with frequencies from 0.01-67GHz, a gain of 20 to 60dB, a peak of +5 to +27 dBm, and connectors from SMA of 1.85mm

Spec Sheet (PDF)

Mechanical drawing 15dB Gain

Mechanical drawing 28dB Gain
