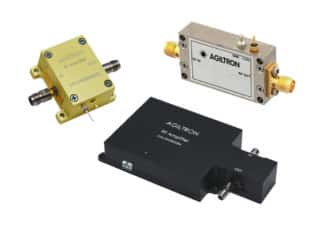

Broadband Low Noise RF Amplifier (LNA)

Name: James
Brand: Photonwares Co.
SKU: LNAM
Price: 361137 USD
Availability: InStock
Rating: 4.7 (19 reviews)

Features:

Broadband 50kHz to 50GHz
High Gain 30dB
Low Noise
Amplify The Control Signal

Low Frequency

High Frequency

Gain

P1dB

Power Supply

Module

Clear

Low Frequency	High Frequency	Gain	P1dB	Output Vpp	Price
20 MHz	300 MHz	32 dB			$2,188
0.1 GHz	8 GHz	17 dB	17 dB		$1,137
0.1 GHz	8 GHz	33 dB	16 dB		$1,298
0.5 GHz	18 GHz	12 dB	12 dB		$1,137
1 GHz	18 GHz	27 dB	16 dB		$1,761
50 kHz	20 GHz	28 dB	15 dB	4.4	$2,290
50 kHz	20 GHz	35 dB	17 dB	4.4	$1,390
30 kHz	45 GHz	17 dB		3.3	$1,350
30 kHz	45 GHz	30 dB		7.5	$2,398
30 kHz	35 GHz	40 dB			$3,590
50 kHz	45 GHz	20 dB	17 dBm		$2,980
1 MHz	48 GHz	22 dB			$3,640
1 MHz	50 GHz	38 dB			$4,238
90 kHz	67 GHz	18 dB	13 dBm		$5,860
50 kHz	100 GHz	13 dB	1.0 dBm		$11,980

Email Inquiry (Preferred)

Fast Quote-Select Part #

Questions About This Product

Phone Call Requires Email to Set-Up

SKU: LNAM

The LNAM series low noise amplifiers are designed to drive lithium niobate modulators. These amplifiers enhance the RF input signal to reach modulator’s Vp at high frequencies. They use 50 Ohm SMA connectors and operate within a frequency range of 50 kHz to 50 GHz.Agiltron provides cost-effective low-noise amplifiers with frequencies from 0.01-67GHz, a gain of 20 to 60dB, a peak of +5 to +27 dBm, and connectors from SMA of 1.85mm.

Agiltron provides cost-effective low-noise amplifiers with frequencies from 0.01-67GHz, a gain of 20 to 60dB, a peak of +5 to +27 dBm, and connectors from SMA of 1.85mm
