Single-Window NxM Coupler/Splitter

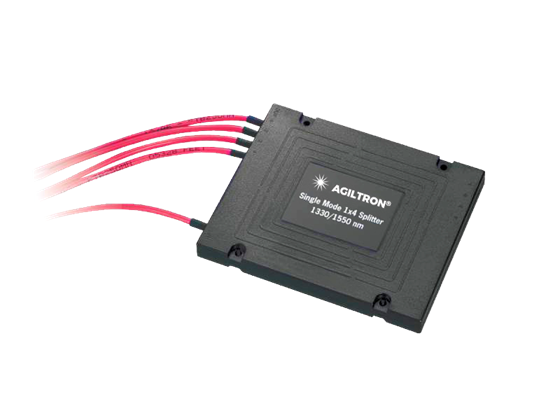

The FC Series Single Window Single Mode Wideband Tree/Star Coupler is based on Agiltron’s fused biconical taper technology and compact packaging structure. It features high port count, good uniformity, low excess loss, and very low polarization sensitivity. The device is ideal for splitting or combining light with exceptional performance over a wide wavelength range.

Single-Window NxM Coupler/Splitter

The FC Series Single Window Single Mode Wideband Tree/Star Coupler is based on Agiltron’s fused biconical taper technology and compact packaging structure. It features high port count, good uniformity, low excess loss, and very low polarization sensitivity. The device is ideal for splitting or combining light with exceptional performance over a wide wavelength range.
FC Series (NxM) Coupler Nx4      Nx8 Nx16 Nx32 Unit
Standard Configuration N=1,2  N=1,2  N=1,2     N=1,2
Operation Wavelength                1270~1350 or 1510~1590 nm
Maximum Insertion Loss     7.2     10.8 14.5 18.0 dB
Maximum Uniformity     1.2      1.8 2.4 3.0 dB
Polarization Dependent Loss      0.3      0.5 0.6        0.8 dB
Directivity                            > 55 dB
Optical Power                            < 500 mW
Operating Temperature                           -10~70 oC
Storage Temperature                           -40~85     oC
Fiber Type and Length           Corning SMF28, Length >1 m
Package Dimension                      See Package Table I, II
