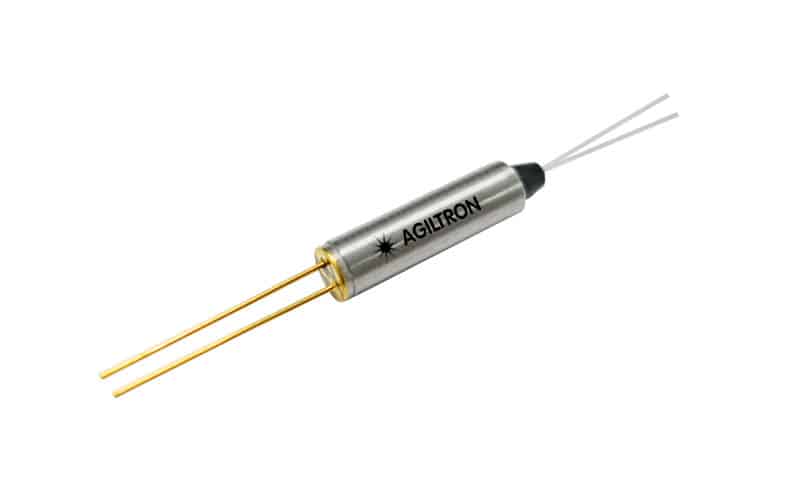

MEMS Fiber Optical Variable Attenuator Ø 5.5mm – 2D

Name: James
Brand: Photonwares Co.
SKU: VOAM
Price: 3685 USD
Availability: InStock
Rating: 4.8 (9 reviews)

Features:

850nm, 1260-1630nm
500mW
Rise/Fall <0.3ms
High Repeatability
Low Power
Small

Non-Power State

Wavelength

Package

Attenuation

Grade

Fiber Type

Fiber Cover

Fiber Length

Connector

Clear

Email Inquiry

Fast Quote-Select Part #

Special Order

SKU: VOAM

The VOAM Series of MEMS Fiber Optical Variable Attenuator is constructed using an electrostatic rotating mirror hermetically sealed with nitrogen, featuring high repeatability, low power consumption, and low cost. A voltage between 0-6 V on the drive pin sets the optical attenuation. When power is removed, the VOA returns to its default state. The device’s electrical character is capacitive without polarity. It can be mounted directly on printed circuit boards. The VOAMs are bidirectional. The component is compliant with RoHS requirements and Telcordia standards GR1221 qualified.
Agiltron provides customized designs and modular assemblies to meet control and integration applications.

Single-Mode Selection

Fiber Type	SM450	SM600	780HP	Hi1060	SM28
Wavelength Range (nm)	480-650	620-650	760–980	980–1250	1250–1650
Insertion Loss (dB)	< 5	< 3	≤ 2	≤ 2	≤ 1.5
Maximum Attenuation (dB)	> 30	> 30	> 30	> 30	> 30
Max Optical Power (W)	0.05	0.1	0.1	0.2	0.3
Polarization DL	0.5 dB @ 20 dB	0.4 dB @ 20 dB	0.3 dB @ 20 dB	0.2 dB @ 20 dB	0.2 dB @ 20 dB
Return Loss (dB)	≥ 45	≥ 45	≥ 45	≥ 45	≥ 45
Operating Temperature	0 to 50°C	0 to 50°C	0 to 50°C	0 to 50°C	0 to 50°C
Storage Temperature	-50 to 85°C	-50 to 85°C	-50 to 85°C	-50 to 85°C	-50 to 85°C
Price	$𝟧𝟫𝟢	$𝟦𝟣𝟢	$𝟥𝟩𝟢	$𝟤𝟥𝟢	$𝟪𝟧
Datasheet
Buy

Polarization-Mode Selection

Fiber Type	PM460	PM630	PM780	PM980	PM1550
Wavelength Range (nm)	460-700	620-650	760–1100	960–1200	1260–1650
Insertion Loss (dB)	< 5	< 3	≤ 2	≤ 2	≤ 1
Maximum Attenuation (dB)	> 30	> 30	> 35	> 35	> 35
Extinction Ratio (dB)	> 16	> 16	> 16	> 16	> 18
Return Loss (dB)	≥ 35	≥ 35	≥ 35	≥ 35	≥ 35
Max Power (mW)	50	100	100	100	300
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-50 to 90°C	-50 to 90°C	-50 to 90°C	-50 to 90°C	-50 to 90°C
Price	$𝟩𝟩𝟢	$𝟨𝟪𝟢	$𝟨𝟧𝟢	$𝟧𝟧𝟢	$𝟥𝟫𝟢
Datasheet
Buy

Multi-Mode Selection

Fiber Type	62.5/125
Wavelength Range (nm)	800–1600
Insertion Loss (dB)	≤ 1
Maximum Attenuation (dB)	30
PDL (dB)	0.01
Return Loss (dB)	≥ 35
Max Optical Power (W)	0.3
Operating Temperature	0 to 50°C
Storage Temperature	-40 to 85°C
Price	$𝟣𝟣𝟢
