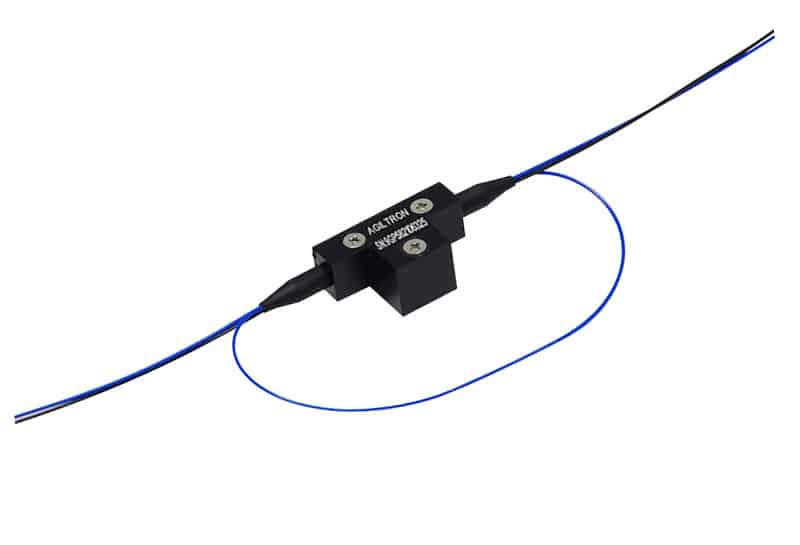

UV-IR No-Gap Full 2x2 MEMS Fiber Optical Switches

Features:
  • Vibration Insensitive
  • Bidirectional
  • Ultra-Low Loss ~ 0.1dB
  • Polarization Maintain
  • Ultra Broad Wavelength 300-2000nm
  • Ultra Large Extinction > 70dB
  • Ultra-Wide Operation Temperature -40 to 80C
  • High Optical Power Handling 1W
  • All Fiber Types: SM, MM, PM, Large Core

Email Inquiry
Fast Quote-Select Part #
Special Order

SKU: FFSW

The FF Series fiber optic switch connects optical channels with a micro-mechanical fiber-to-fiber auto-alignment platform and is activated via an electrical relay. Its advanced design significantly increases performance, offering unprecedented low optical loss, little wavelength dependence with no coatings, high power handling, as well as unmatched low cost. The latching operation preserves the selected optical path after the driver signal has been removed. The switch has integrated electrical position sensors. It is bidirectional and conveniently controllable by 5V TTL.

Utilizing no lens, the FF Series switch can accommodate all types of fibers, including SM, MM, PM, double cladding, bendable, large core, and small core.

Single-Mode Selection
Fiber Type SM400
SM450 SM600 Hi780 SM800 SM980
Hi1060 SM28 SM1950
Wavelength Range* 360 – 530nm 480 – 650nm 620 – 650nm 760 – 800nm 830 – 870nm 980 – 1550nm 960 – 1080nm 1020 – 1900nm 1.7 – 2.3 µm
Insertion Loss <3.5dB <1.5dB <1.5dB <1.2dB <1.2dB <1.2dB <1dB <0.5dB ≤0.5dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70dB 70 dB 70 dB 70 dB
Max Optical Power 0.2W 0.2W 0.3W 0.4W 0.5W 0.2W 0.7W 1W 1W
Datasheet
Price $𝟪𝟥𝟥 $𝟩𝟣𝟤 $𝟧𝟩𝟢 $𝟧𝟩𝟢 $𝟧𝟩𝟢 $𝟧𝟧𝟪 $𝟦𝟥𝟩 $𝟥𝟤𝟤 $𝟧𝟧𝟫
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
*The wavelength dependence is solely determined by the fiber property
Polarization-Mode Selection
Fiber Type PM405
PM460 PM630 PM780 PM850 PM980 PM1550 PM1950
Wavelength Range* 400 – 680nm 460 – 700nm 620 – 650nm 760 – 800nm 830 – 870nm 960 – 1080nm 1260 – 1650nm 1850 – 2200nm
Insertion Loss <3.5dB <3.5dB <1.7dB <1.6dB <1.5 dB <1.3dB <0.6dB <0.8dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Datasheet
Price
Buy
*The wavelength dependence is solely determined by the fiber property
Multi-Mode Selection
Fiber Type MM 50/125
MM 62.5/125 FG50LGA MM 105/125 STP 50/125
Wavelength Range* 350 – 2500nm 350 – 2500nm 350 – 2500nm 350 – 2500nm 700 – 1000nm
Insertion Loss ≤0.35dB ≤0.35dB ≤0.35dB ≤0.6dB ≤0.6dB
Isolation 50dB 50dB 50dB 50dB 50dB
Datasheet
Price $𝟥𝟨𝟤 $𝟥𝟪𝟥 $𝟪𝟥𝟩 $𝟦𝟪𝟧 $𝟨𝟢𝟩
Buy buy_now buy_now buy_now buy_now buy_now
*The wavelength dependence is solely determined by the fiber property
