Raman Spectrometer

Enquire Now
 PeekSeeker Pro
Download Product Spec PDF

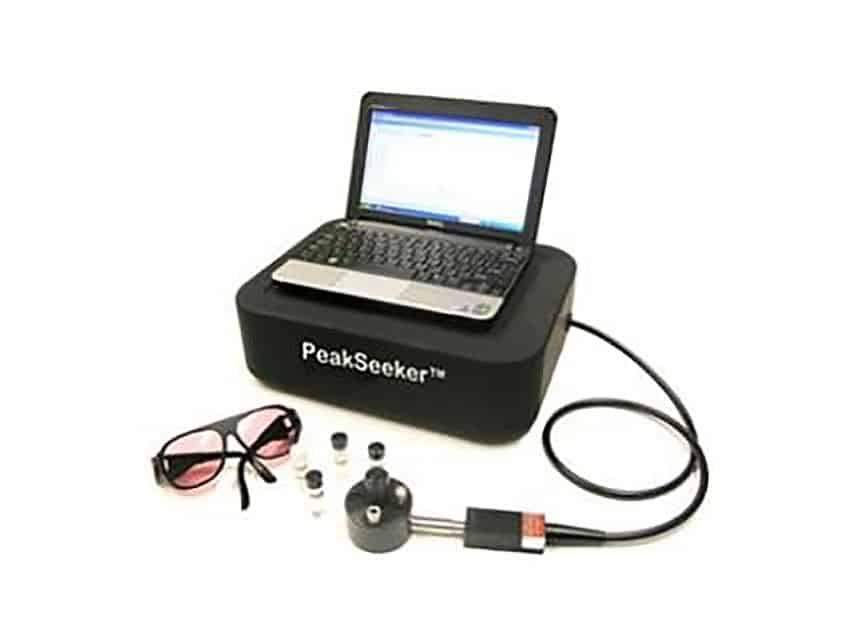

The PeakSeeker Pro represents the state-of-the-art for an accurate, cost-effective and easy-to-use Raman spectrometer. The premier instrument in the Raman Systems family utilizes TE-cooled, high efficiency CCD detector arrays, and is available configured with either a 532 nm or 785 nm wavelength excitation laser selected by the system model number.

PeakSeeker Pro is extremely versatile for measuring multiple sample types. Sampling accessories include a vial holder for liquids and powders. User friendly software and USB connectivity enables truly plug and play operation. The external probe accesses remote samples and interfaces to video microscopy options.

PeekSeeker Pro

Versatility: The user can sample solids, liquids, and powders even when inside transparent packaging and containers such as bags, bottles and vials.

Sensitivity: The PeakSeeker Pro fully meets the stringent requirements of USP Monograph 1120 for resolution, sensitivity and stability. The detector array is cooled to -20 C. Deep blocking laser rejection filters obstruct Rayleigh scatter and isolate Raman scatter for valuable molecular analysis.

Portability: The spectrometer is small and lightweight. Rugged construction and ergonomic design allow it to be carried just about anywhere and set up for immediate use.

Simplicity:  Each PeakSeeker Pro system includes a notebook PC pre-loaded with RSIQ™ software for true point-and-click operation. Sample spectra are acquired within seconds.

Adaptability: Optional software add-ons:

RSIQ-QUAL enables substance ID by a database search of thousands of reference spectra using commercially available spectral libraries. Users can also create unique libraries (Only for Pro-785).

RSIQ-QUANT is a multivariate analysis tool and

RSIQ-CFR supports 21 CFR Part 11 compliance for cGMP electronic records and signatures.

Model Number PRO-785 PRO-785E PRO-532
Excitation Wavelength (nm) 785 785 532
Laser Power (mW) 5 to 300 5 to 300 100
Spectral Range, Raman Shift (cm-1) 200 to 2000 200 to 3900 200 to 4500
Spectral Resolution (cm-1) 8 (optional 6) 14 13 (optional 8)
Signal-to-Noise Ratio 1000:1 (at full signal)
Optics NA = 0.22, Laser spot size = 0.1 to 0.2 mm
Power 12VDC from power adapter input = 100/240 VAC @ 50/60 Hz
Size (W) 14.2 in, (D) 7.5 in, (H) 4.3 in   (36 X 29 X 11 cm)
Weight < 8 lb ( 3.6 Kg)
Operating Temperature  (ºC) -25 to 45
P/N: PEK-785-2
