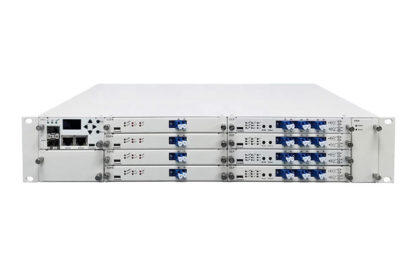

Dual 1xN Broad Wavelength Optical Switch Box – Fiber-Fiber™

Features:
  • Low Cost
  • High Reliability
  • Low Insertion Loss
  • Broad Band
  • Compact Design
  • Low Power Switching

ENQUIRE NOW

SKU: LBSCD

The Fiber-Fiber™ series Dual 1xN Broad Wavelength Fiber Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved by using a patent-pending optomechanical configuration activated via an electrical control signal. Latching operation preserves the selected optical path after the drive signal has been removed. Photonwares unique design offers low insertion loss covering a very broad spectral band from 200 to 2000 nm with various single mode and multimode fibers.

Multimode fiber core size is from 50 to 1000 µm. The switch is bidirectional and can accommodate up to 300 fiber ports. The switch is controlled by RS232 or USB computer interface with a graphic Software. Labview version is also available.

Reviews

There are no reviews yet.

Be the first to review “Dual 1xN Broad Wavelength Optical Switch Box – Fiber-Fiber™”

Your email address will not be published. Required fields are marked *

SA Series 1xN MM Switch Min Typical Max Unit
Operation Wavelength UV-VIS        200                                  2000          nm
MWIR       1000                                 5000
LWIR       7000                                 12000
 Insertion Loss [1] 0.6 2 dB
 Wavelength Dependent Loss 0.15 0.3 dB
 Polarization Dependent Loss 0.05 0.10 dB
 Return Loss (APC/UPC) 50/40 dB
 Cross Talk 50 dB
 Power Supply Current 100 200 mA
 Switching Type Latching
 Switching Time 200 ms
 Durability 10⁷ Cycle
 Operating Temperature 0 70 oC
 Optical Power Handling 300  500 [2] mW
 Storage Temperature -40 85 oC
 Fiber Type          50                                  1000 mm
 Package Dimension 2U 19″ Mount Rack mm

Note:

[1]. Exclude connectors.

[2]. High power version available.
