Dual Channel Broadband Low Noise RF Amplifier

SKU: DLNA

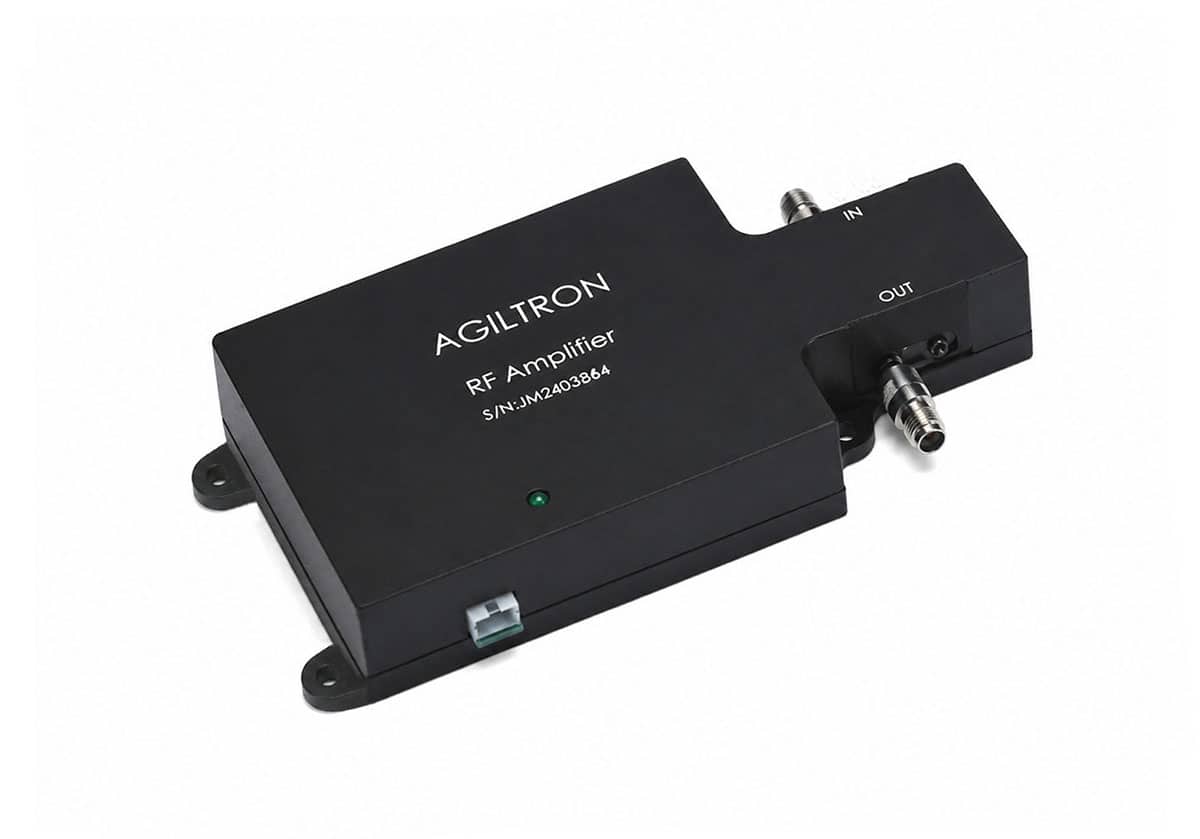

The DLNA is a broadband low-noise RF amplifier delivering up to 17 dBm output power with a 4.5 V output amplitude across a frequency range of 50 kHz to 45 GHz. It operates on +12 V DC at 180 mA and features SMA RF connectors (8.86 mm). This high-performance dual-channel amplifier is designed for 43 Gb/s optical modulator driver applications using Lithium Niobate or Electro-Absorption technologies. It offers low jitter, excellent gain, and flat group delay up to 45 GHz. The module is plug-and-play, suitable for lab use or integration into transponders. Its matched dual-driver design supports differential modulators such as dual IQ modulators and advanced modulation formats. The LNAM provides low power dissipation, fast rise and fall times, and stable performance.
Note: The module must be mounted on a heat sink to prevent overheating and potential damage.
