1×6 High Speed Optical Switch Module – NanoSpeed™

Features:
  • Solid-State
  • High speed
  • Ultra-high reliability
  • Low insertion loss
  • Compact

Click 'Spec Sheet' for all available configurations/part#
EMAIL ENQUIRY NOW

SKU: NSSW

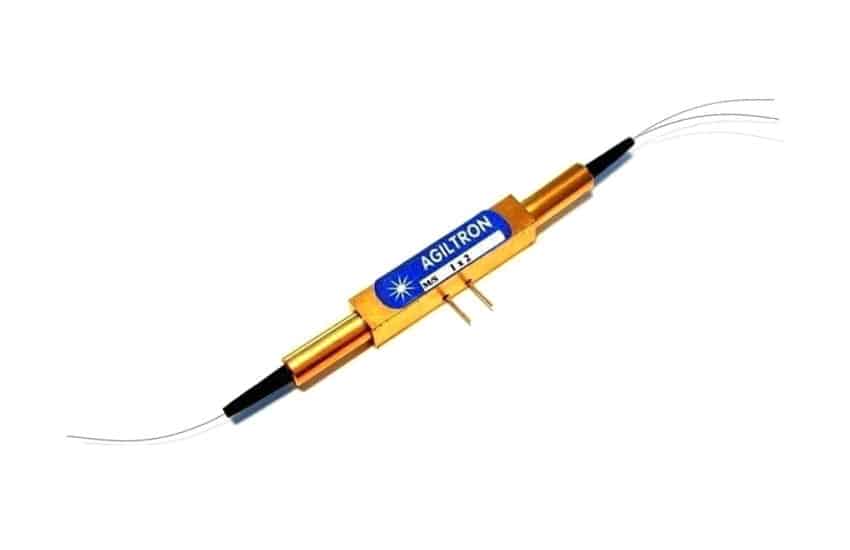

The NS Series 1×6 solid-state fiber optic switch is made by cascading five 1X2 switches. It connects optical channels by redirecting an incoming optical signal into a selected output optical fiber. This is achieved using patent pending non-mechanical configurations with solid-state all-crystal designs, which eliminates the need for mechanical movement and organic materials. The NS fiber-optic switch is designed to meet the most demanding switching requirements of ultra-high reliability, fast response time, and continuous switching operation.

The device comes with a PCB driver with 12V DC power and 5 independent TTL control signal inputs.

Reviews

There are no reviews yet.

Be the first to review “1×6 High Speed Optical Switch Module – NanoSpeed™”

Your email address will not be published.

NS   Series 1×6 Switch Min Typical Max Unit
Central Wavelength 780 2000 nm
Insertion Loss [1] 1260~1650nm 2.5 3.0 dB
960~1260nm 2.8 3.3 dB
760~960nm 3.0 3.5 dB
Cross Talk 20 25 dB
Durability 1014 cycles
Polarization Dependent Loss 0.20 0.35 dB
IL Temperature Dependency 0.25 0.5 dB
Polarization Mode Dispersion 0.1 0.3 ps
Return Loss 45 50 dB
Response Time (Rise, Fall) 30 300 ns
Repetition Rate[2] DC 100 kHz
Operating Temperature -5 70 oC
Optical Power Handling[3] 300 mW
Storage Temperature -40 85 oC
Package Dimension2              195×220 mm

[1] Excluding connectors.

[2] Standard driver. High repetition rate (up to 300 KHz) is available with special circuit, please call us.

[3] Defined at 1550nm. For the shorter wavelength, the handling power may be reduced. High power version (up to 5W) for 1310nm/1550nm is available; please call us for more information.
