Ultra-Broadband/Low-Loss Regular 1x1, 1x2 MEMS Fiber Optical Switch

This product is protected by US Patent 11,125,947 B1 and other pending patents
Ultra-Broadband/Low-Loss <span class="title-highlight" style="color:Red">Regular</span> 1x1, 1x2 MEMS Fiber Optical Switch
Features:
  • Vibration Insensitive
  • Bidirectional
  • Ultra-Low Loss ~ 0.1dB
  • Polarization Maintain
  • Ultra Broad Wavelength 300-2000nm
  • Ultra Large Extinction > 70dB
  • Ultra-Wide Operation Temperature -40 to 80°C
  • Fast Switch < 0.4ms
  • All Fiber Types: SM, MM, PM, Large Core

For Orders Under $500, Purchase Is Available Online Only
Email Inquiry (Preferred)
Fast Quote-Select Part #
Questions About This Product
Phone Call Requires Email to Set-Up

SKU: FFSW

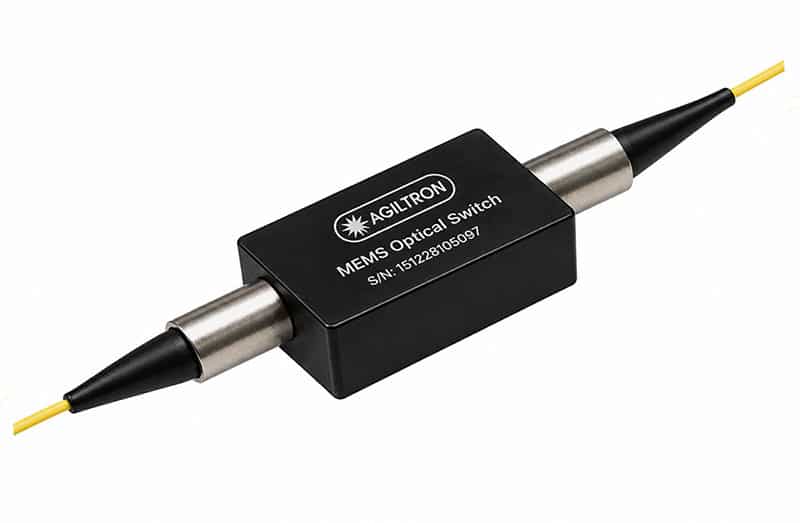

The FF Series fiber optic switch delivers industry-leading performance, offering nearly lossless, continuous light transmission without perturbations. Its ultra-broadband operation is limited only by the intrinsic properties of the fiber, making it highly versatile for a wide range of applications. The switch features fast switching times (<1 ms), insensitivity to temperature and vibration, a high on/off extinction ratio, high polarization extinction ratio, and cost-effective. At the core of this innovative design is a MEMS-based auto-alignment silicon chip, which achieves direct fiber-to-fiber coupling. A tiny gap (less than 5 microns) between fibers is filled with a non-fluorescent, index-matching liquid, creating an ultra-low-loss optical path without requiring lenses or coatings—effectively eliminating surface reflection issues. This design ensures continuous, high-fidelity light transmission, making it ideal for spectroscopy, optical coherence tomography (OCT), interferometry, and other systems sensitive to optical losses and reflections. The FF platform is compatible with all fiber types that have a 125 µm outer diameter, including single-mode (SM), multimode (MM), polarization-maintaining (PM), double-cladding fibers, and bend-insensitive fibers, supporting both large and small core configurations. The switch operates via an electrical relay with a latching mechanism, maintaining the selected optical path even when power is removed. Bidirectional light paths are controlled using a 4.5V electrical pulse, with no continuous power consumption required—energy is only consumed during switching events. Two versions of MEMS chips are available: a fast-switching chip optimized for single-mode fibers and a slow-switching chip designed for polarization-maintaining fibers. The PM fiber switches maintain both polarization states consistent with the input fiber’s alignment.

Single-Mode Selection 1×2
Fiber Type SM400
 SM450 SM600 780HP Hi980
 Hi1060 SM28 SM1950
Wavelength Range* 360 – 530 nm 440 – 650 nm 620 – 650 nm 760 – 980 nm 980 – 1550 nm 960 – 1080 nm 1020 – 1900 nm 1.7 – 2.3 µm
Insertion Loss < 3 dB < 1.3 dB < 1.3 dB < 1 dB < 1 dB < 0.9 dB < 0.4 dB ≤ 0.4 dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Max Optical Power 0.2 W 0.2 W 0.3 W 0.4 W 0.2 W 0.7 W 1 W 1 W
Datasheet
Price $𝟧𝟫𝟢 $𝟧𝟢𝟥 $𝟦𝟢𝟦 $𝟦𝟢𝟦 $𝟥𝟫𝟦 $𝟥𝟢𝟪 $𝟤𝟣𝟤 $𝟧𝟫𝟧
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property
Polarization-Mode Selection 1×2
Fiber Type PM405
 PM460 PM630 PM780 PM850 PM980 PM1550 PM1950
Wavelength Range* 400 – 680nm 460 – 700nm 620 – 650nm 760 – 800nm 830 – 870nm 960 – 1080nm 1260 – 1650nm 1850 – 2200nm
Insertion Loss <3dB <3dB <1.5dB <1.4dB <1.3 dB <1.1dB <0.5dB <0.7dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Datasheet
Price $𝟩𝟩𝟦 $𝟩𝟢𝟫 $𝟧𝟩𝟨 $𝟧𝟥𝟤 $𝟧𝟦𝟤 $𝟦𝟥𝟪 $𝟦𝟤𝟧 $𝟫𝟦𝟫
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property
Multi-Mode Selection 1×2
Fiber Type MM 50/125
 MM 62.5/125 FG50LGA MM 105/125 STP 50/125
Wavelength Range* 350 – 2500nm 350 – 2500nm 350 – 2500nm 350 – 2500nm 700 – 1000nm
Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB ≤0.5dB ≤0.5dB
Isolation 50dB 50dB 50dB 50dB 50dB
Datasheet
Price $𝟤𝟧𝟩 $𝟤𝟩𝟣 $𝟧𝟫𝟦 $𝟥𝟦𝟦 $𝟦𝟥𝟢
Buy buy_now buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property
Electronic Driver Selection
Type 1×2
 Pushbutton and USB Interface with GUI
Datasheet
Price $𝟧𝟪𝟦
Buy buy_now
